Powersports

Mud Lite® Series

Download Catalog Find a Retailer

Best Used For: All Terrain,Intermediate Surfaces,Loose Surfaces,Mud,Rocks/Ruts,Snow,Soft Surfaces,Sport ATV,Utility ATV

Mud Lite® Series

6 ply rated construction
Made in the USA

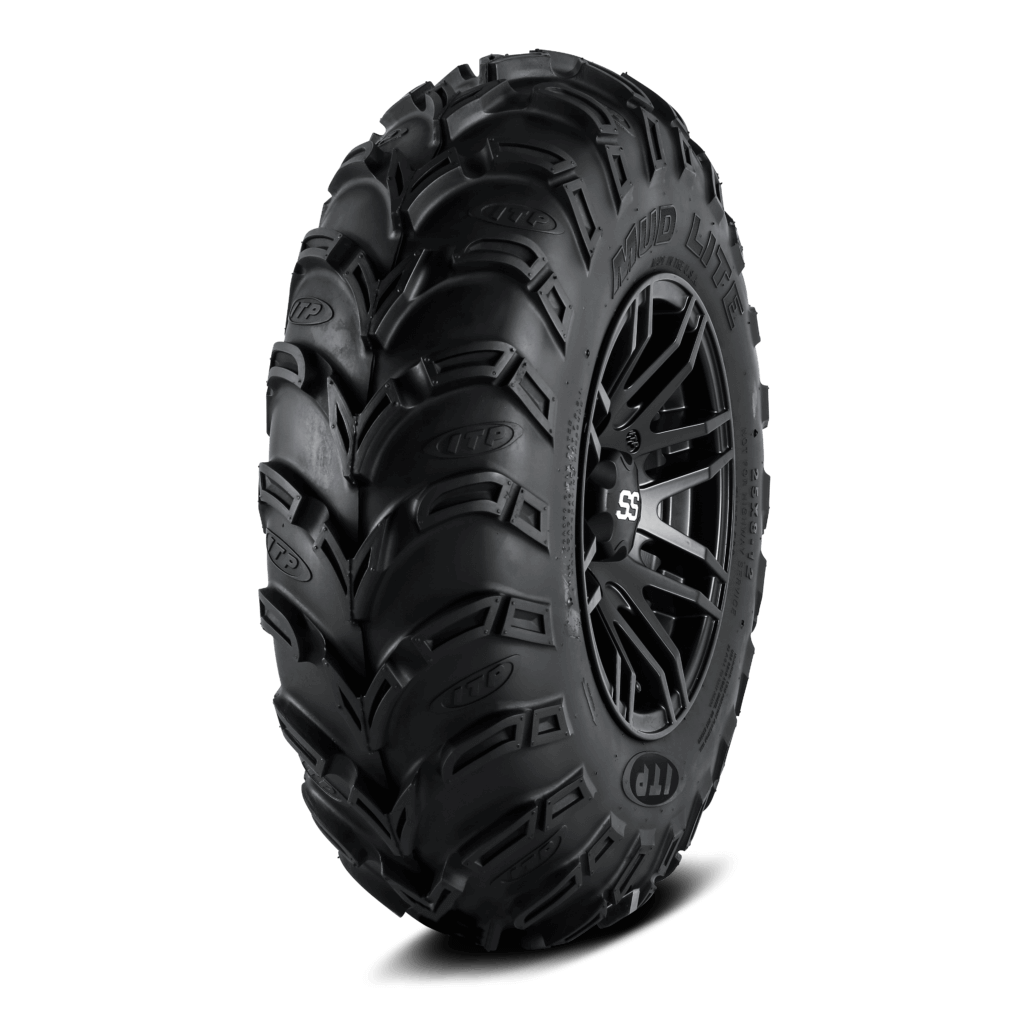

Mud Lite AT

3/4 inch lugs

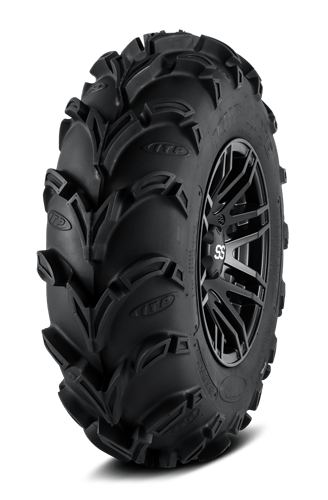

Mud Lite XL

1-1/8 inch lugs

Mud Lite XXL

1.3 inch lugs

Mud Lite Sport

3/4 inch lugs

Download Warranty

Technical Specifications

Mud Lite® XL

Standard
Metric

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth	Front or Rear	Weight (POUND)	Additional Information
19	560363	25x8.00-12NHS	6	25.3000	7.8000	695.0000	18	34 /32		20.9000	UTILITY ATV
20	560364	25x10.00-12NHS	6	25.8000	9.7500	855.0000	18	34 /32		28.4000	UTILITY ATV
18	560431	25x12-11	6	25.7000	11.3000	455.0000	7	33 /32		27.8000	UTILITY ATV
21	560432	25x12-12	6	25.9000	11.0000	1020.0000	18	34 /32		26.4000	UTILITY ATV
28	560455	27x10.00-14NHS	6	27.3000	9.9000	935.0000	18	34 /32		29.2000	UTILITY ATV
29	560456	27x12.00-14NHS	6	27.6500	11.1000	1100.0000	18	34 /32		32.0000	UTILITY ATV
34	560494	28x10.00-14NHS	6	27.8000	9.8000	990.0000	18	34 /32		28.7000	UTILITY ATV
35	560495	28x12.00-14NHS	6	27.8000	11.0000	1200.0000	18	34 /32		31.6000	UTILITY ATV
23	56A343	26x10.00-12NHS	6	26.8000	9.6000	910.0000	18	34 /32		27.1000	UTILITY ATV
26	56A345	27x10.00-12NHS	6	27.6000	9.8000	965.0000	18	34 /32		29.0000	UTILITY ATV
27	56A347	27x12.00-12NHS	6	27.8000	11.7000	1140.0000	18	34 /32		32.9000	UTILITY ATV
30	56A349	28x10-12	6	27.8000	9.8000	805.0000	18	34 /32		28.5000	UTILITY ATV
31	56A350	28x12.00-12NHS	6	28.7000	11.4000	935.0000	18	34 /32		31.2000	UTILITY ATV
24	56A361	26x12.00-12NHS	6	27.2000	12.0000	1070.0000	18	34 /32		32.9000	UTILITY ATV
25	56A380	27x9.00-12NHS	6	27.2000	9.3000	880.0000	18	34 /32		26.5000	UTILITY ATV
22	56A3P6	26x9.00-12NHS	6	26.0000	8.9000	825.0000	18	34 /32		24.3000	UTILITY ATV

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth	Front or Rear	Weight (KILOGRAM)	Additional Information
19	560363	25x8.00-12NHS	6	642.6000	198.1000	315.2000	18	27		9.5000	UTILITY ATV
20	560364	25x10.00-12NHS	6	655.3000	247.7000	387.8000	18	27		12.9000	UTILITY ATV
18	560431	25x12-11	6	652.8000	287.0000	206.4000	7	26.2		12.6000	UTILITY ATV
21	560432	25x12-12	6	657.9000	279.4000	462.7000	18	27		12.0000	UTILITY ATV
28	560455	27x10.00-14NHS	6	693.4000	251.5000	424.1000	18	27		13.2000	UTILITY ATV
29	560456	27x12.00-14NHS	6	702.3000	281.9000	499.0000	18	27		14.5000	UTILITY ATV
34	560494	28x10.00-14NHS	6	706.1000	248.9000	449.1000	18	27		13.0000	UTILITY ATV
35	560495	28x12.00-14NHS	6	706.1000	279.4000	544.3000	18	27		14.3000	UTILITY ATV
23	56A343	26x10.00-12NHS	6	680.7000	243.8000	412.8000	18	27		12.3000	UTILITY ATV
26	56A345	27x10.00-12NHS	6	701.0000	248.9000	437.7000	18	27		13.2000	UTILITY ATV
27	56A347	27x12.00-12NHS	6	706.1000	297.2000	517.1000	18	27		14.9000	UTILITY ATV
30	56A349	28x10-12	6	706.1000	248.9000	365.1000	18	27		12.9000	UTILITY ATV
31	56A350	28x12.00-12NHS	6	729.0000	289.6000	424.1000	18	27		14.2000	UTILITY ATV
24	56A361	26x12.00-12NHS	6	690.9000	304.8000	485.3000	18	27		14.9000	UTILITY ATV
25	56A380	27x9.00-12NHS	6	690.9000	236.2000	399.2000	18	27		12.0000	UTILITY ATV
22	56A3P6	26x9.00-12NHS	6	660.4000	226.1000	374.2000	18	27		11.0000	UTILITY ATV

Mud Lite® AT

Standard
Metric

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth	Front or Rear	Weight (POUND)	Additional Information
15	560430	24x8-12	6	23.9000	7.5000	310.0000	7	21 /32		16.2000	UTILITY ATV
9	56A304	23x8-11	6	23.0000	8.0000	290.0000	7	21 /32		15.9000	UTILITY ATV
7	56A305	24x11-10	6	24.6000	10.7000	440.0000	7	21 /32		19.9000	UTILITY ATV
16	56A306	25x8-12	6	25.1000	7.6000	340.0000	7	21 /32		16.9000	UTILITY ATV
8	56A308	25x11-10	6	25.9000	10.5000	455.0000	7	21 /32		19.8000	UTILITY ATV
13	56A320	25x8-11	6	24.8000	8.3000	355.0000	7	21 /32		16.8000	UTILITY ATV
17	56A321	25x10-12	6	25.3000	9.4000	420.0000	7	21 /32		22.4000	UTILITY ATV
14	56A322	25x10-11	6	24.8000	9.9000	420.0000	7	21 /32		18.6000	UTILITY ATV
5	56A326	23x8-10	6	23.0000	8.0000	300.0000	7	21 /32		13.5000	UTILITY ATV
6	56A327	23x10-10	6	23.0000	10.0000	375.0000	7	21 /32		17.2000	UTILITY ATV
12	56A328	24x10-11	6	24.0000	10.0000	395.0000	7	21 /32		19.4000	UTILITY ATV
10	56A332	24x8-11	6	24.1000	7.8000	320.0000	7	21 /32		14.5000	UTILITY ATV
3	56A373	25x12-9	6	25.0000	11.9000	495.0000	7	21 /32		23.7000	UTILITY ATV
1	56A387	22x11-8	6	22.0000	11.0000	395.0000	7	21 /32		16.5000	UTILITY ATV
2	56A388	22x11-9	6	22.0000	10.8000	395.0000	7	21 /32		16.9000	UTILITY ATV
99999999	56A3A5	22x11-10	6	22.0000	11.1000	385.0000	7	21 /32		18.0000	UTILITY ATV
4	56A3A8	22x8-10	6	22.3000	8.0000	275.0000	7	21 /32		14.2000	UTILITY ATV
11	56A3A9	24x9-11	6	24.3000	8.9000	365.0000	7	21 /32		17.6000	UTILITY ATV

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth	Front or Rear	Weight (KILOGRAM)	Additional Information
15	560430	24x8-12	6	607.1000	190.5000	140.6000	7	16.7		7.3000	UTILITY ATV
9	56A304	23x8-11	6	584.2000	203.2000	131.5000	7	16.7		7.2000	UTILITY ATV
7	56A305	24x11-10	6	624.8000	271.8000	199.6000	7	16.7		9.0000	UTILITY ATV
16	56A306	25x8-12	6	637.5000	193.0000	154.2000	7	16.7		7.7000	UTILITY ATV
8	56A308	25x11-10	6	657.9000	266.7000	206.4000	7	16.7		9.0000	UTILITY ATV
13	56A320	25x8-11	6	629.9000	210.8000	161.0000	7	16.7		7.6000	UTILITY ATV
17	56A321	25x10-12	6	642.6000	238.8000	190.5000	7	16.7		10.2000	UTILITY ATV
14	56A322	25x10-11	6	629.9000	251.5000	190.5000	7	16.7		8.4000	UTILITY ATV
5	56A326	23x8-10	6	584.2000	203.2000	136.1000	7	16.7		6.1000	UTILITY ATV
6	56A327	23x10-10	6	584.2000	254.0000	170.1000	7	16.7		7.8000	UTILITY ATV
12	56A328	24x10-11	6	609.6000	254.0000	179.2000	7	16.7		8.8000	UTILITY ATV
10	56A332	24x8-11	6	612.1000	198.1000	145.1000	7	16.7		6.6000	UTILITY ATV
3	56A373	25x12-9	6	635.0000	302.3000	224.5000	7	16.7		10.8000	UTILITY ATV
1	56A387	22x11-8	6	558.8000	279.4000	179.2000	7	16.7		7.5000	UTILITY ATV
2	56A388	22x11-9	6	558.8000	274.3000	179.2000	7	16.7		7.7000	UTILITY ATV
99999999	56A3A5	22x11-10	6	558.8000	281.9000	174.6000	7	16.7		9.0000	UTILITY ATV
4	56A3A8	22x8-10	6	566.4000	203.2000	124.7000	7	16.7		6.4000	UTILITY ATV
11	56A3A9	24x9-11	6	617.2000	226.1000	165.6000	7	16.7		8.0000	UTILITY ATV

Mud Lite® XXL

Standard
Metric

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth	Front or Rear	Weight (POUND)	Additional Information
36	560401	30x10-12	6	30.0000	10.0000	1170.0000	18	40 /32		34.2000	UTILITY ATV
37	560419	30x12-12	6	30.5000	12.0000	1320.0000	18	40 /32		37.2000	UTILITY ATV
38	560462	30x10-14	6	29.6000	10.1000	550.0000	7	40 /32		34.9000	UTILITY ATV
39	560463	30x12-14	6	30.2500	11.8500	660.0000	7	39 /32		38.3000	UTILITY ATV

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth	Front or Rear	Weight (KILOGRAM)	Additional Information
36	560401	30x10-12	6	762.0000	254.0000	530.7000	18	31.8		15.5000	UTILITY ATV
37	560419	30x12-12	6	774.7000	304.8000	598.7000	18	31.8		16.9000	UTILITY ATV
38	560462	30x10-14	6	751.8000	256.5000	249.5000	7	31.8		15.8000	UTILITY ATV
39	560463	30x12-14	6	768.4000	301.0000	299.4000	7	31		17.4000	UTILITY ATV

Mud Lite® Sport

Standard
Metric

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth	Front or Rear	Weight (POUND)	Additional Information
40	560428	20x11-9	6	20.0000	11.0600	340.0000	7	22 /32		16.8000	SPORT ATV
41	560429	22x7-10	6	21.9000	7.5000	255.0000	7	16 /32		13.5000	SPORT ATV

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth	Front or Rear	Weight (KILOGRAM)	Additional Information
40	560428	20x11-9	6	508.0000	280.9000	154.2000	7	17.5		7.6000	SPORT ATV
41	560429	22x7-10	6	556.3000	190.5000	115.7000	7	12.7		6.1000	SPORT ATV
