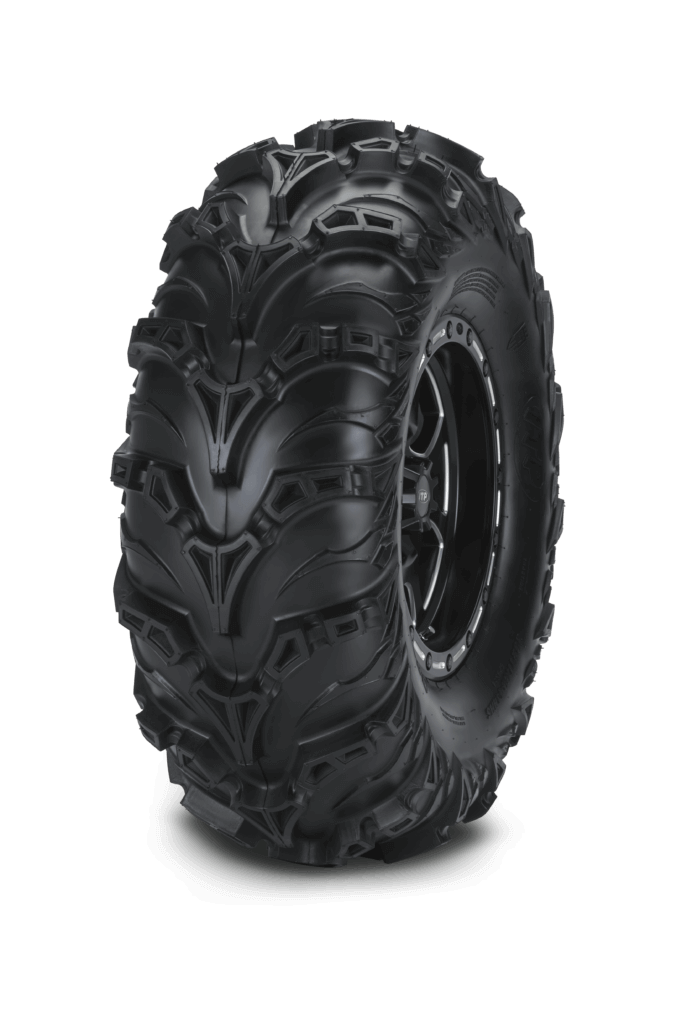

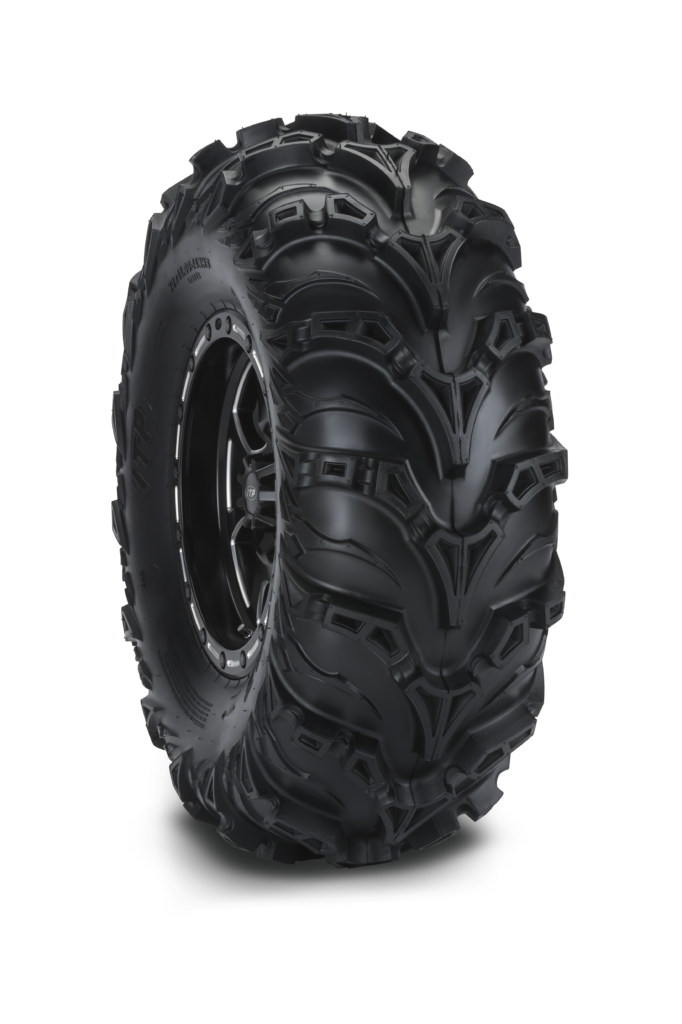

Mud Lite® II

Download Catalog Find a Retailer

Best Used For: All Terrain,Intermediate Surfaces,Loose Surfaces,Mud,Rocks/Ruts,Snow,Soft Surfaces,Utility ATV,UTV/SxS

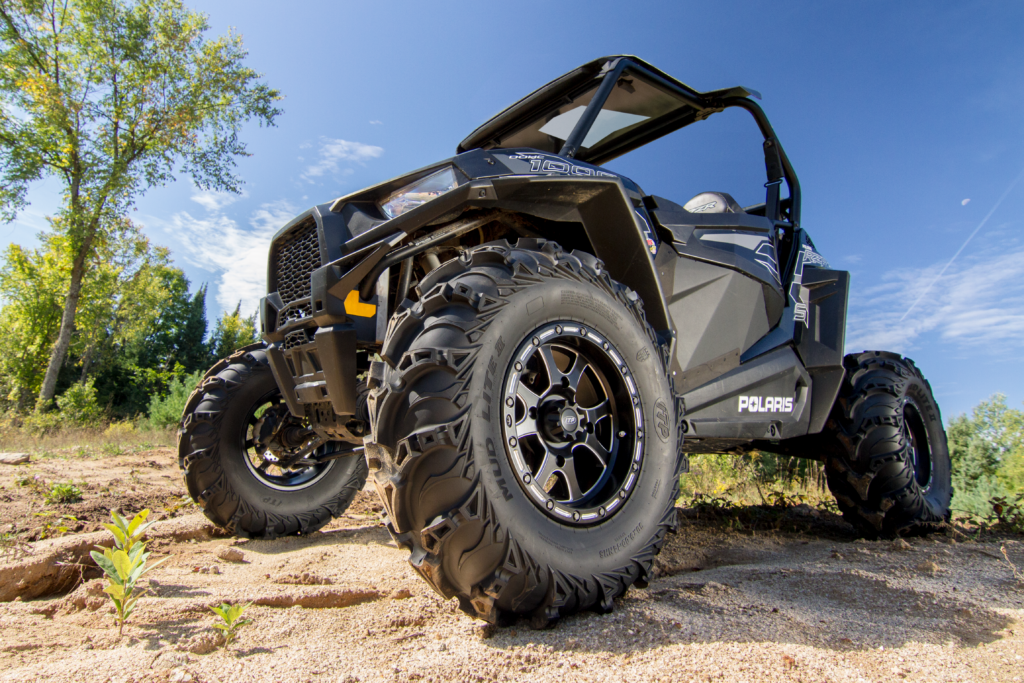

The Mud Lite II is a new twist on a proven classic for SxSs and ATVs.

Part of the popular Mud Lite family, this redesigned tread pattern provides better traction, improves mud clean-out, and improves ride comfort.

Performance

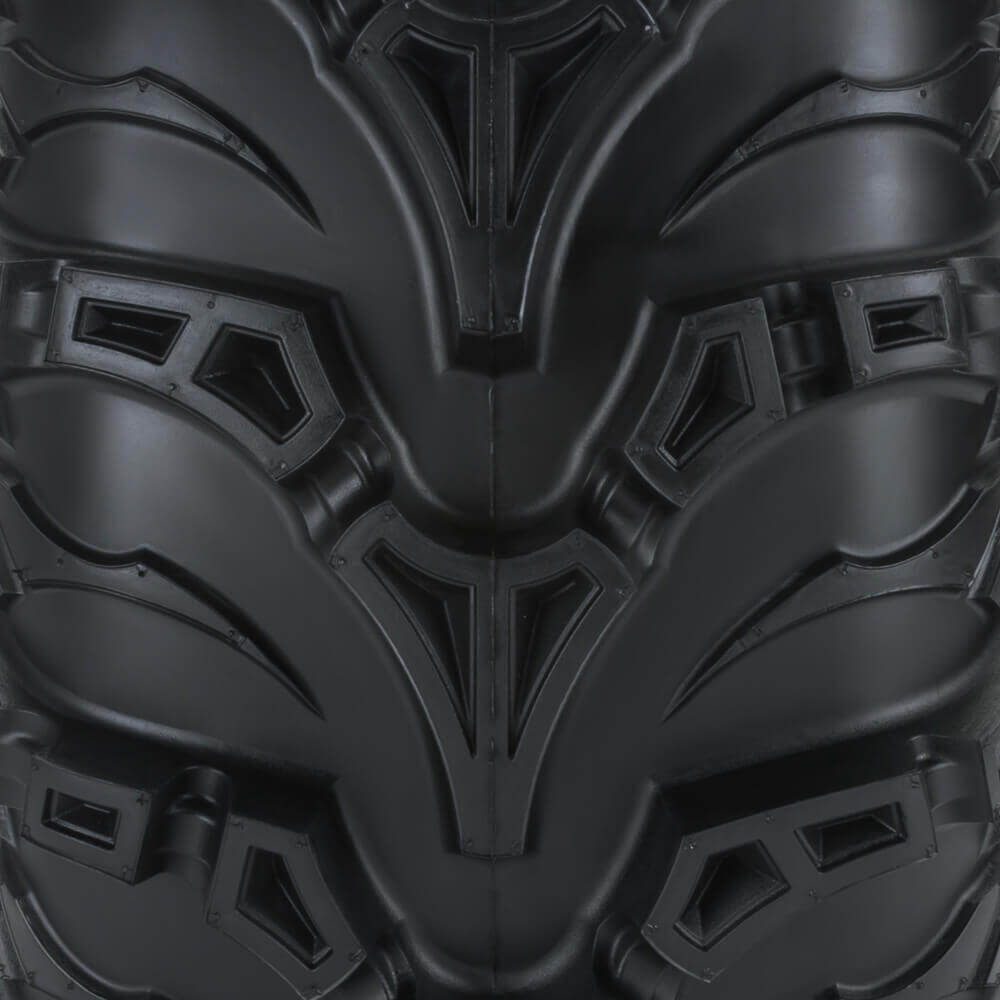

Tread Design

Construction

Applications: All-Terrain, Intermediate, Rocks/Ruts, Mud, Soft/Loose, Snow

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth ()	Weight (POUND)	Additional Information
13	6P0523	30x9.00-14NHS	6	30.7000	9.6000	1360.0000	28	33 /32	35.0000	UTILITY ATV/UTV
14	6P0524	30x11.00-14NHS	6	31.1000	11.1000	1570.0000	28	33 /32	41.0000	UTILITY ATV/UTV
7	6P0525	27x9.00-12	6	27.3700	9.3900	520.0000	18	33 /32	30.0000	UTILITY ATV/UTV
8	6P0526	27x11.00-12	6	27.6200	10.8300	615.0000	18	33 /32	36.0000	UTILITY ATV/UTV
3	6P0527	25x8.00-12NHS	6	25.5000	8.4000	905.0000	28	23 /32	22.0000	UTILITY ATV/UTV
4	6P0528	25x10.00-12NHS	6	26.0000	10.2000	1100.0000	28	23 /32	27.0000	UTILITY ATV/UTV
5	6P0529	26x9.00-12	6	26.1500	9.0900	480.0000	18	33 /32	29.0000	UTILITY ATV/UTV
6	6P0530	26x11.00-12	6	26.3100	11.2900	565.0000	18	33 /32	35.0000	UTILITY ATV/UTV
9	6P0531	27x9.00-14	6	28.1000	8.8000	1100.0000	28	33 /32	28.0000	UTILITY ATV/UTV
10	6P0532	27x11.00-14NHS	6	28.6000	11.1000	1335.0000	28	33 /32	33.0000	UTILITY ATV/UTV
11	6P0533	28x9.00-14	6	28.3800	9.0800	535.0000	18	33 /32	35.0000	UTILITY ATV/UTV
12	6P0534	28x11.00-14	6	28.8300	10.5700	640.0000	18	33 /32	38.0000	UTILITY ATV/UTV
1	6P0886	23x8.00-12NHS	6	23.4000	8.2000	510.0000	20	19 /32	20.0000	UTILITY ATV/UTV
2	6P0887	23x10.00-12NHS	6	23.7000	9.4000	635.0000	20	19 /32	23.0000	UTILITY ATV/UTV

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth ()	Weight (KILOGRAM)	Additional Information
13	6P0523	30x9.00-14NHS	6	779.8000	243.8000	616.9000	28	26.2	16.0000	UTILITY ATV/UTV
14	6P0524	30x11.00-14NHS	6	789.9000	281.9000	712.1000	28	26.2	19.0000	UTILITY ATV/UTV
7	6P0525	27x9.00-12	6	695.2000	238.5000	235.9000	18	26.9	14.0000	UTILITY ATV/UTV
8	6P0526	27x11.00-12	6	701.5000	275.1000	279.0000	18	26.9	17.0000	UTILITY ATV/UTV
3	6P0527	25x8.00-12NHS	6	647.7000	213.4000	410.5000	28	18.3	10.0000	UTILITY ATV/UTV
4	6P0528	25x10.00-12NHS	6	660.4000	259.1000	499.0000	28	18.3	12.0000	UTILITY ATV/UTV
5	6P0529	26x9.00-12	6	664.2000	230.9000	217.7000	18	26.9	14.0000	UTILITY ATV/UTV
6	6P0530	26x11.00-12	6	668.3000	286.8000	256.3000	18	26.9	16.0000	UTILITY ATV/UTV
9	6P0531	27x9.00-14	6	713.7000	223.5000	499.0000	28	26.2	13.0000	UTILITY ATV/UTV
10	6P0532	27x11.00-14NHS	6	726.4000	281.9000	605.5000	28	26.2	15.0000	UTILITY ATV/UTV
11	6P0533	28x9.00-14	6	720.9000	230.6000	242.7000	18	26.9	16.0000	UTILITY ATV/UTV
12	6P0534	28x11.00-14	6	732.3000	268.5000	290.3000	18	26.9	18.0000	UTILITY ATV/UTV
1	6P0886	23x8.00-12NHS	6	594.4000	208.3000	231.3000	20	15.1	9.0000	UTILITY ATV/UTV
2	6P0887	23x10.00-12NHS	6	602.0000	238.8000	288.0000	20	15.1	11.0000	UTILITY ATV/UTV

Redesigned tread pattern provides better traction, improves mud clean-out and maximizes ride comfort.
